Blurring the line between living spaces to make for the perfect view

Full specifications covering viiu sliding doors

viiu sliding doors have been purposefully designed to satisfy both homeowner and Building Regulation requirements simultaneously. Security and energy expectations are always successfully met thanks to a combination of innovative design and expert-level fabrication, all while giving installers and specifiers just enough configuration to let them tailor the product on a project-by-project basis.

Enquire about viiu doors

Materials

Aluminium is the optimum material for any door expected to carry a lot of glazing weight. viiu's high strength-to-weight ratio means it can accommodate up to 1200kg when fitted in a fixed pane capacity, still carrying up to 750kg of glass when expected to slide via motorisation. Aluminium’s durable nature lets viiu's framework stay minimal, always remaining weather resistant to outside elements to prevent likelihood of corrosion, rust, and flexing.

PropertyDetails
Certification BS 6375-1:2009 | BS 6375-2:2009 | BS 6375-3:2009
Burglar resistance PAS 24: 2016 and RC 2/WK
Manual vent Max. weight300 kg
Motorised vent Max. weight750 kg
Fixed glass pane Max. Weight1200 kg
Get in touch with us

Size capabilities

We can configure viiu to make use of up to four sliding door panels, making it easy for installers to accommodate large aperture sizes. In some cases, replacing the full width of a property’s side with a structurally bonded wall of glass. 5850 x 3000mm is the max height and width for panel vents, giving installers a wide array of size options when operating on site.

PropertyDetails
Max. height vent 5850 mm
Max. width vent 3000 mm
Visible width meeting section35mm
Overall system depth (frame)147/179mm
Min/max glass thickness36/52mm
Get in touch with us

Thermal performance

An integrated thermal break allows every viiu sliding door we fabricate to successfully suit low-energy households, so much so that it has been awarded the Minergie quality label. The design separates the cold air outside from the warmth present inside living spaces, resulting in U-values as low as 0.75 W/m2K – far below the required industry standard. Thermal performance can be increased further by having panels supplied triple glazed.

PropertyDetails
Thermal insulation (Uf) 0,75 W/m²K
Acoustic performance Rw(C;Ctr) = 43 (-1;-3) dB
Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance B4 (1600 Pa)
Get in touch with us

Technical highlights worth mentioning

PAS 24 Accredited doors

PAS 24 accredited

viiu surpasses the British minimum security that is PAS:24 2016, being the only ultra slim sliding door system on the market to do so.

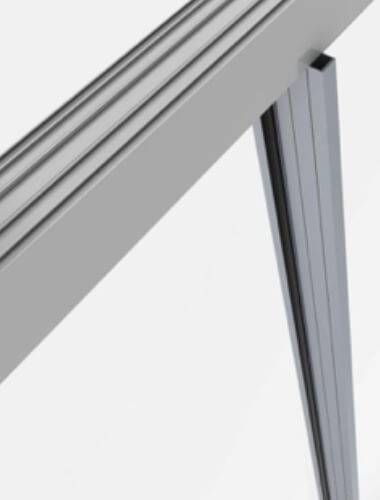

Slim symmetrical sight-lines aluminium door

Slim symmetrical sightlines

Crystal clear views and enhanced light entry come as a result of viiu's wholly symmetrical and slim sightlines that are in-keeping with the minimal design.

Overhead motors concealed within profile

Smart overhead motors

viiu can carry the weight of a large fixed glass pane up to 750 kilograms, easily moved via smart overhead motorized vents.

Full home installation of Hi-Finity doors

Discuss your next project with us

Working on a new-build project or modern commercial development? Viiu sliding doors always act as an appreciated addition.

enquire

Become a Viiu registered installer

Are you a tradesman interested in adding Viiu to your product portfolio? We supply impeccably engineered Viiu sliding doors at a quick turnaround.

Become an installer

Enquire

If you like what you see and would like to learn more about Viiu sliding doors, get in touch with a member of the team via an online message.
